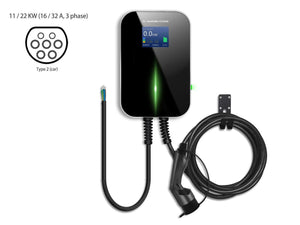

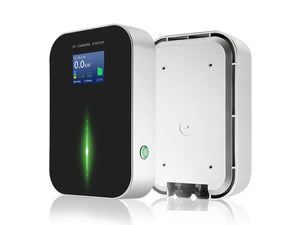

Wallbox EV Charger - 11KW or 22KW with 6m Type 2 cable to car

Compatibility to the built year of vehicle: all years.

(This product will have a delivery time from 6 to 8 weeks)

Input voltage/Output voltage: 100~250V AC / 380V±20V AC (Three Phase)
Input frequency: 47~63Hz
Max. output power : 11KW / 22KW (Three Phase)
Max. output current: 32A
Charging interface type: IEC 62196-2, SAE J1772
Overvoltage protection: Yes
Under-voltage protection: Yes
Overload protection: Yes
Short circuit protection: Yes
Earth leakage protection: Yes
Over-temp protection: Yes
Lightning protection: Yes
Ethernet/WIFI/4G/Bluetooth: No/Yes/Opt/Yes
LCD: 3.5-inch color display
RCD: Type A
LED Indicator light: Yes
Intelligent power adjustment: Yes
RFID: Optional
Protection degree: IP67
Environment temperature: -20℃ ~ +65℃
Relative humidity : 0-95% non-condensing
Maximum altitude : <2000m
Cooling: Natural air cooling
Standby power consumption: <8W

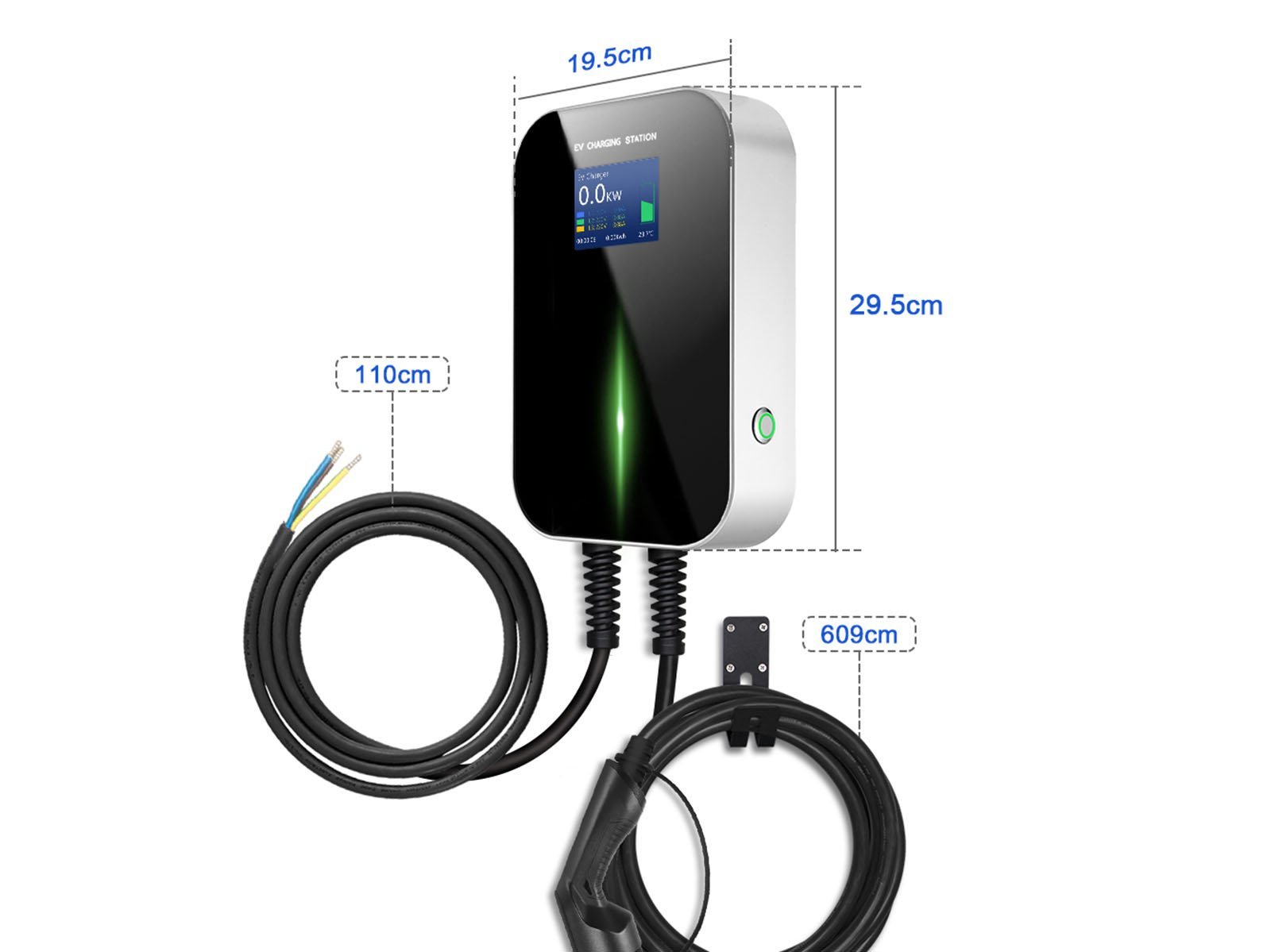

Dimension (W/H/D) : 200/300/70mm
Weight: 6KG
Wall-mounting bracket/Ground-mounting pole: Yes/Opt
Certificate : CE,TUV,FCC,IK10,IP65,CSA
