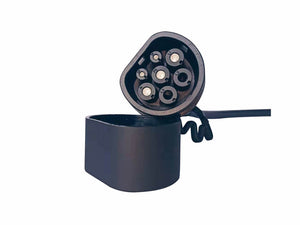

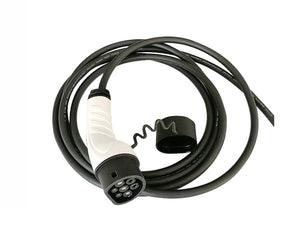

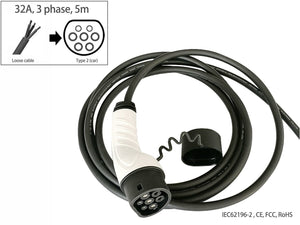

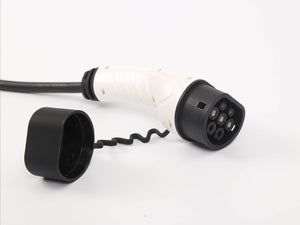

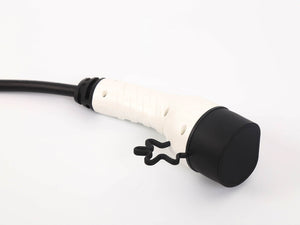

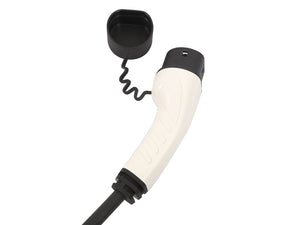

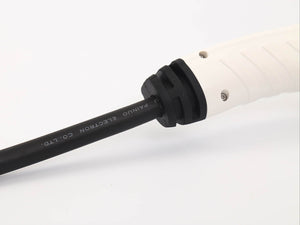

EV charging cable,Loose cable to Type 2 (car),32A,3 phase,5m,Fisher

Compatibility to the built year of vehicle: all years.

(This product will have a delivery time from 6 to 8 weeks)

Brand: Fisher
Rated Current: 32A
Cable colour: black
Charging standard: SAE J1772
Type EV charging cable
Operating Voltage: 240V
Mechanical life: No-load plugin/pull out>10000times
Coupled insertion force: >45N<80N
Impact of external force: can afford 1 m drop and 2t vehicle run overpressure
Insulation resistance: >1000MQ(DC500V)
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact Resistance: 0.5mQ Max
contact bush: Copper alloy, silver plating
Operating temperature: -30°C~+50°C
Cable specification: 32A 5*6 mm2+2*0.5 mm2
Cable colour: black
Charging standard: IEC62196-2 J1772
Certification: CE, FCC, RoHS
